Fiber Optic Diffuse Reflection Probe

Main features:

  • Sapphire window
  • Minimum of stray light
  • Custom option - purging of optical window
  • Custom option - hight temperature design

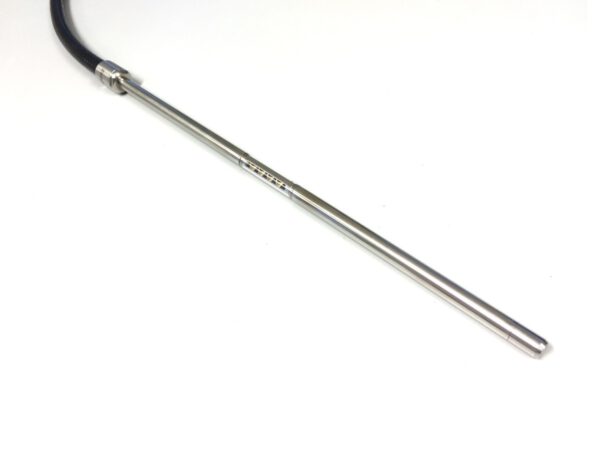

  • Custom option - side reflection design

Description

The diffuse reflection probes for Vis-NIR spectral range are used for process monitoring in a number of applications for liquids and powders. The unique optical design provides an effective collecting of the reflected signal and a low level of stray light.
Robust probes with sapphire window withstand perfectly to harsh process conditions. Custom options like optical window cleaning as well as high temperature design are available.

For more information please visit our “Downloads” section and find relative articles at our “Publications” page.

Specs

Common Parameters of Fiber Optic Diffuse Reflection Probes with sapphire optics
Probe type 20° angled window 20° angled purged window harsch enviroment design side line design
Spectral range 380-2500 or 200-1200nm 400-2200nm 400-2200nm 400-2200nm
Total Length 2m 2m 2m 2m
Shaft Length 450mm 400mm 400mm 200mm
Shaft Diameter 6mm 25mm 12mm 12mm
Shaft Material Stainless steel Stainless steel Hastelloy Stainless steel
Sealing epoxy epoxy PTFE epoxy
Fiber Configuration see datasheets (7+7) NIR 600/660 (18+1) NIR 400/440 line of 9 measuring points NIR 300/330
Input / Output Connectors SMA 905 SMA 905 SMA 905 customized ferrules
Length Extending N/A https://artphotonics.com/product/silica-uv-vis-nir-cables/ N/A N/A
Temperature range, °C 0 - +150 0 - +150 0 - +200 0- +200

Downloads

Applications

  • Reaction Monitoring in real time
  • Process Analytical Technologies (PAT)
  • Crystallization Development & Screening
  • Analytical Characterization
  • Biopharmaceutical Analysis
  • Biofuel Development & Production
