Raman Fiber Probe

Main features

  • On-line Raman spectroscopy
  • Multi-wavelength excitation (630-785 nm)
  • Flexible and robust for industrial applications in harsh environment
  • Compatible with all fiber optic spectrometers

Description

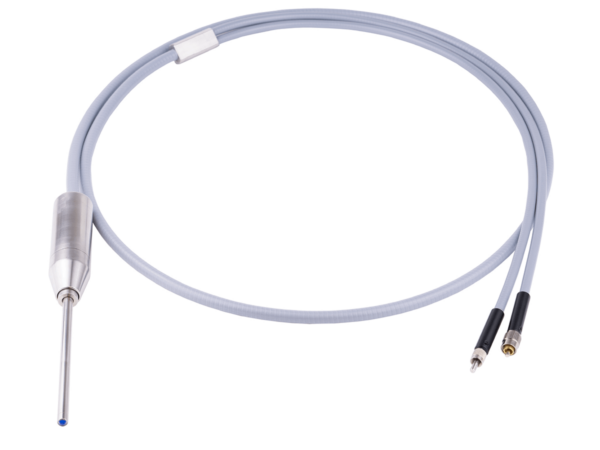

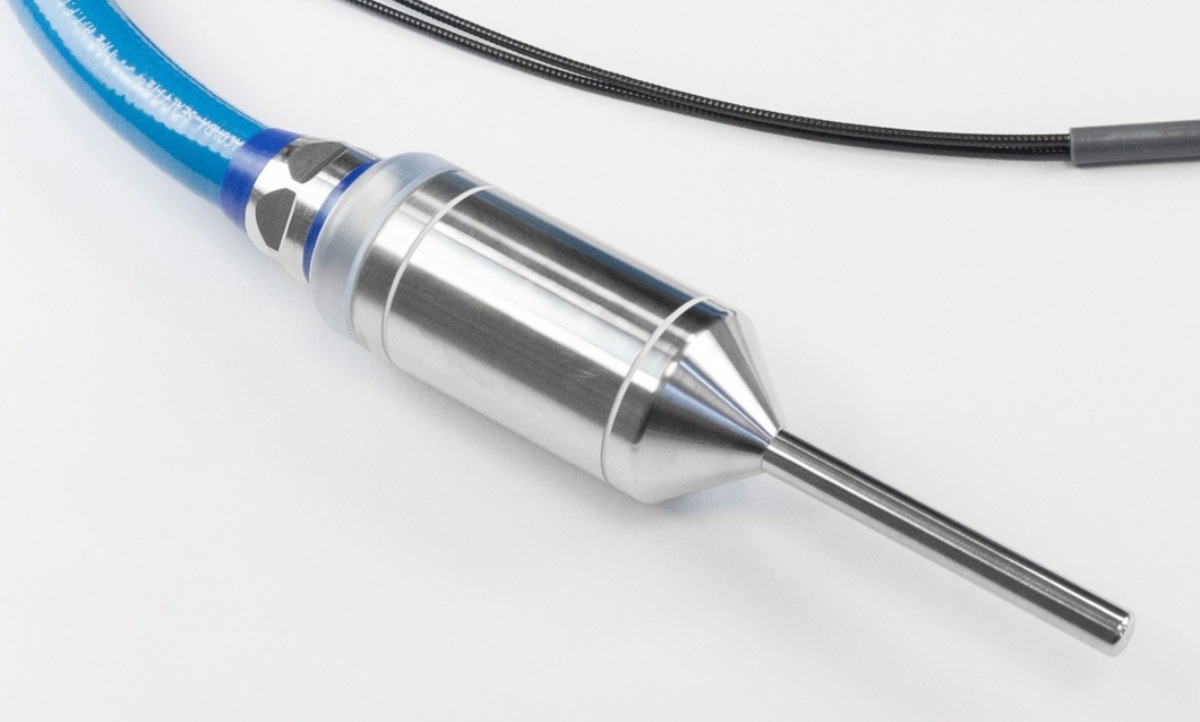

FlexiSpec® product line includes the high sensitivity Raman fiber optic probe to be used with any Raman spectrometer.
Available in two options – multi-wavelength excitation (630-785 nm) and single-wavelength excitation (532 and 785 nm), these fiber probes have a bifurcated design, connecting the probe to both a laser and a spectrometer. Our Raman probe allows to analyze spectra in fingerprint (FP, 800-1800 cm-1) and high wavenumber (HWVN, 2800-3800 cm-1) spectral ranges using different lasers.

FlexiSpec® Raman fiber optic probes are compatible with process-interfaces to be cleanable and to enable reaction monitoring in lab, pilot plant and run full automated process control.

For more information please visit our “Downloads” section and find relative articles at our “Publications” page.

Specs

Common Parameters of Raman Fiber Optic Probes
Laser Wavelength Multi-wavelength excitation: 630-785 nm Standard (ideal for use with dual-lasers, e.g. 680 + 785 nm).

Single-wavelength excitation: 532 and 785 nm Standard.

Other configurations on request: 405, 473, 488, 514, 532, 633, 670, 780, 785, 830, 1064 nm
Laser Spot at the sample collimated beam (OD ~ 3 mm) or focused beam (OD ~ 0.2 mm)

other configurations on request
Spectral Range Cut-Off 805 nm (300 cm-1 for 785 nm laser) – for Multi-wavelength

792 nm (100 cm-1 for 785 nm laser) – for Single-wavelength
Filter Efficiency Optical Density > 6 for Laser rejection

Transmission > 95% for Raman shift
Laser Transmission > 80%
Fiber type Laser – NIR105/125 NA=0.22

Detector – NIR200/220 NA=0.22
Window Material Sapphire AR coated
Lens Material Fused Silica AR coated
Window Sealing Material Epoxy glue
Probe Shaft & Body Material Stainless Steel
Sealing Material FPM (Viton)
Shaft Size OD = 12 mm, length = 200±5mm

OD = 6 mm, length = 100±5mm
Fiber Length 1.2m + 2 legs of 0.5m each
Total Length (shaft + fiber) 2.00 ± 0.05m
Input / Output Connectors FC/PC or SMA905
Protection Liquid Tight Protection (LTP)
Operating temperatures from -20°C to 200°C (up to 300°C on request)
Pressure (max) 100 Bar

Downloads

Applications

  • Reaction monitoring in real time
  • Process Analytical Technologies (PAT)
  • Analytical Characterization
  • Biopharmaceutical Analysis
  • Biofuel Development & Production
